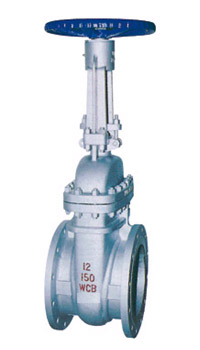

Cast Steel Valves

Size Range: 2” Thru 24”
Valve Types :
Gate, Globe, Check and Pressure Seal
Body Bonnet Material :
WCB, WCC, WC1, WC9, C5, C12, CA15, LCB, LCC, CF3, CF3M, CF8, CF8M, CN7M, M35-1,
N-12M, CW-12M, CY-40, CZ-100 and other exotic material grades
Trim Material :
13CR, 304, 316, 317, 321, 347, 44, 51, Alloy 20, Monel 400, Monel 500, Stellite and other exotic material grades
Pressure Class :
150, 300, 600, 900, 1500, and 2500
End Connections :
Butt Weld, Raised Face, and Ring Type Joint
Industry Standards :
ASTM, ASME, ANSI, API, and MSS
